ROTA NC 400-120 A11-SV60°
Power lathe chucks with through-hole
ID 852044
Standard power lathe chucks with through-hole
Product features:
Product features:
- 3-jaw wedge-hook chuck
- Through-hole: 120 mm
- Spindle holder: ISO 702-1 Nr. 11
- Jaw interface: 1,5 mm x 60° Nut 24H7
- Stroke per jaw: 8 mm
- Piston stroke: 30 mm
- Max. clamping force: 187.5 kN
- Max. actuating force: 77 kN
- Max. rotational speed: 2500 1/min
- Weight: 117 kg
Technical details
| 主轴类型 | ISO 702-1 |
|---|---|
| 主轴尺寸 | Nr. 11 |
| 细齿 | 1.5 mm x 60° |
| 最大旋转速度 [1/min] | 2500.0 |
| 最大夹持力* [kN] | 187.5 |
| 最大启动力 [kN] | 77.0 |
| 行程/卡爪 [mm] | 8.0 |
| 活塞行程（H） [mm] | 30.0 |
| 惯性矩 [kgm²] | 2.6 |
| 重量 [kg] | 117.0 |

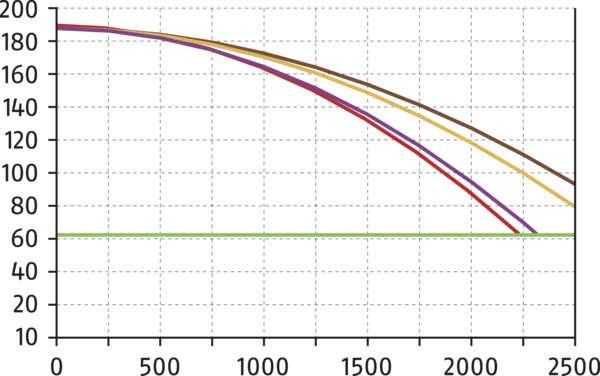

夹持力-RPM 图
夹持力-RPM 图
- X-axis:
- n [min-1]
- Y-axis:
- Fsp [kN]
- brown
-
SHB 400
- red
-
SWB 400
- yellow
-
SHB-J 150
- purple
-
KM-WB 153
- green
-
所需的最小夹持力 Fspmin 33%
标配范围
卡盘、带螺钉的 T 形螺母、卡盘安装螺栓、可转动螺纹环安装用扳手、吊环螺栓和操作手册
