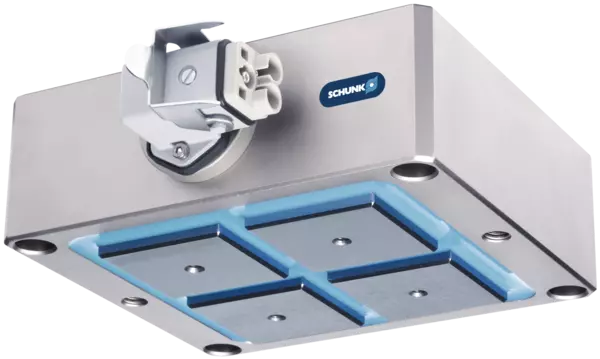

EGM-B-Q-50-2x2
ID 306371
Modulo di presa magnetico EGM, elettrico
- Tipo di magnete: Bipolare
- Forma polo: Quadrato
- Larghezza polo: 50 mm
- Numero di poli, organizzazione poli: 2 x 2
- Interfaccia di comunicazione: I/O digitale
- Alimentazione elettrica: 400 V AC
- Corrente max. totale: 32 A
- Numero di poli: 4
- Superficie magnetica: 100 cm²
- Circuito magnetico: 9.5 A
- Temperatura ambiente max.: 50 °C
Specifiche tecniche
| 重量 [kg] | 12.0 |
|---|---|
| 磁极数量 | 4.0 |
| 磁力区域 [cm²] | 100.0 |
| 最小工件厚度 [mm] | 14.0 |
| 水平磁力面的有效负载 [kg] | 175.0 |
| 垂直磁力面的有效负载 [kg] | 70.0 |
| 最大启动次数/分钟 [1/min] | 8.0 |
| 每分钟启动 5 次时模块温度升高 [°C] | 30.0 |
| 每分钟启动 15 次时模块温度升高 [°C] | 68.0 |
| IP 防护等级 | 52 |
| 启动/停用时电流消耗 [A] | 9.5 |
| 长度 X [mm] | 170.0 |
| 宽度 Y [mm] | 150.0 |
| 高度 Z [mm] | 61.0 |
| 磁力控制器类型 | ECG 02 |
| 额定电压 [V AC] | 400.0 |
| 最大电流 [A] | 32.0 |
| 每个控制器最多的模块数量 | 7.0 |
Dimensions
Dimensions
Operating principle
Magnetization of permanent magnets
Housing material
Steel
Base jaw material
Steel
Actuation
Electrical current pulse for activation and deactivation of the system
Warranty
24 months
Service life characteristics
on request
Scope of delivery
Accessory kit with centering sleeves
