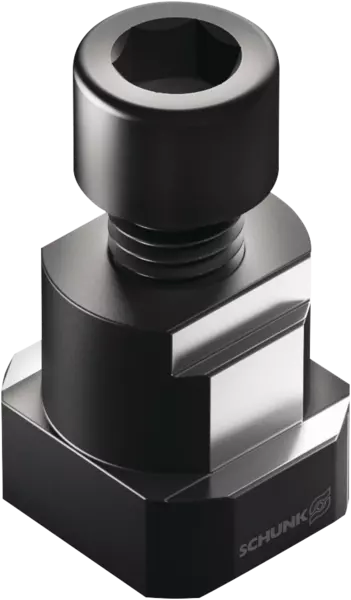

NS 21-17 Illustration similar

NS 21-17

Single T-nut

ID 140122

NS 21-17, Single T-nut
  • Groove width: 21 mm
  • Slot width, stepped: 17 mm
  • Max. tightening torque: 70 Nm
  • Delivery unit: 1 piece
Do you have a question?
Download CAD file
Technical details
Product group Single T-nut
Height H [mm] 27
Height H1 [mm] 11
Cyl.-screw M12 x 30
Max. adm. tightening torque [Nm] 70
When selecting the T-nuts, please check the connection dimensions of the chuck (serration/groove width)
Please check the T-nut and use stepped T-nuts if necessary
