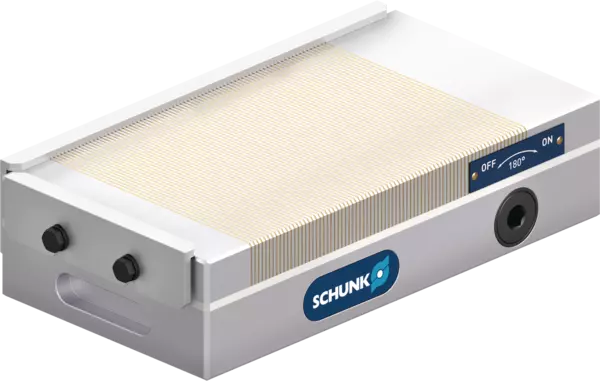

MSC-PM15 250 x 130
MAGNOS for Grinding Applications
ID 422172
Standaard magnetische klemtechnologie
Productkenmerken
Productkenmerken
- Magnetische klauwplaat permanent
- Technologie: Parallelle stang
- Type magneet: Neodymium
- Afmetingen: 250 x 130 x 60 mm
- Pooluitlijning: Traverse
- Poolsteek: 1.5 mm + 0.8 mm
- Max. opspankracht: 80 N/cm²
- Min. werkstukdikte: 1.5 mm
- Max. bedrijfstemperatuur: 80 °C
- Gewicht: 16 kg
Technical details
| L [mm] | 250.0 |
|---|---|
| B [mm] | 130.0 |
| H [mm] | 60.0 |
| Force de serrage max. [N/cm²] | 80.0 |
| Pas polaire | 1.5 mm + 0.8 mm |
| Epaisseur min. de la pièce à usiner [mm] | 1.5 |
| Poids [kg] | 16.0 |
Etendue de la livraison
Plaque de serrage magnétique, clé à six pans creux amovible, manuel d'utilisation
