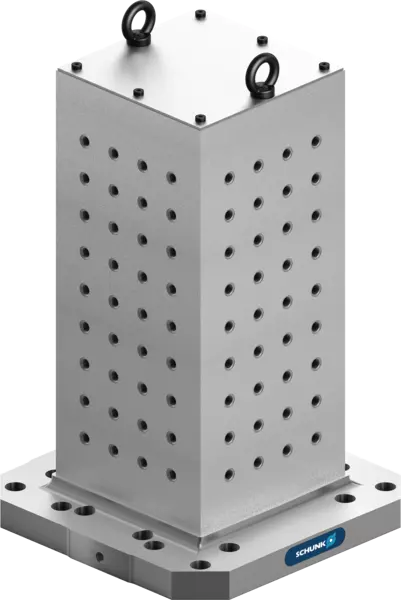

SAT-W-BR 400-600

SAT-W-BR 400-600

Cube Tombstones

ID 431146

Tombstone without clamping vises

Product features:
  • Cube tombstone with precision-milled clamping surfaces and continuous 50 mm bore hole grid.
  • Bore hole grid with alpha-numeric labeling
  • New version bore hole grid with hardened fitted bushings and thread inserts Ø12F7/M12
Technical data:
  • Base Plate: 400 x 400 mm
  • Tower dimensions: 250 x 250 x 600 mm
  • Material: Cast iron EN-GJL-250
  • Weight: 155 kg
Pallet size 400 x 400 mm
Weight [kg] 155

Scope of delivery
Tombstone, cover, shipping screws; without hole grid cover
