MFK 55-29
Pillar assembly system media feed-through
N.º de identificação 313698
Pillar assembly system media feed-through Cap MFK, Size: 55
Desenhos

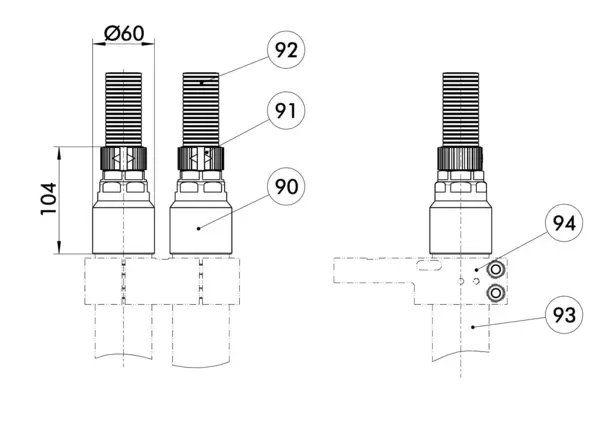

Media routing pillars Ø 55
Media routing pillars Ø 55
Please note that the drawing shown is a view of the basic product. Individual product variants are supplemented by the following drawings. Please also take note of the article's catalog data sheet here.
Media routings for feeding through the supply lines through the hollow pillars.
- 90
- Cap MFK
- 91
- Screw connection MFV
- 92
- Tube MFS
- 93
- Hollow pillar SLH
- 94
- Mounting plates
