ROTA TP 315-105 Z235-SV90° Illustration similaire

ROTA TP 315-105 Z235-SV90°

Mandrin tout à l'avant pneumatique à 3 mors

ID 816150

Standardní pneumatická silová sklíčidla

Vlastnosti produktu:
  • 3-čelisťové sklíčidlo s klínovým háčkem
  • Průchozí otvor: 105 mm
  • Držák vřetene: Z235
  • Rozhraní čelisti: 1/16" x 90° Nut 21H7
Technické údaje:
  • Zdvih na čelist: 5 mm
  • Max. upínací síla při 6 barech: 100 kN
  • Max. aktivační tlak: 3 - 8 bar
  • Max. otáčky 1: 2200 1/min
  • Max. otáčky 2: 3000 1/min
  • Vlastní hmotnost: 78 kg
Typ vřetene -
Velikost vřetene Z235
Ozubení 1/16" x 90°
Doba rozevírání/svírání [s] 5.0

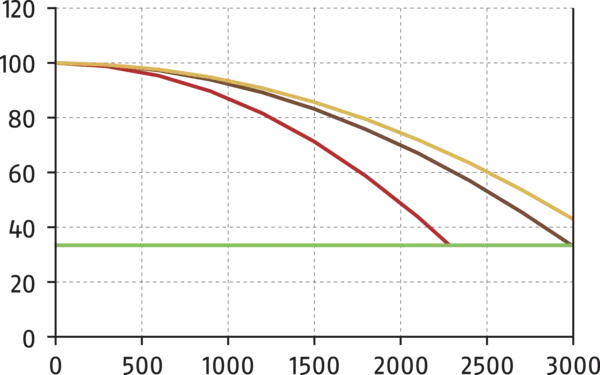

Max. otáčky 1 [1/min] 2200.0
Max. otáčky 2 [1/min] 3000.0
Max. upínací síla (při 6 barech) [kN] 100.0
Min. provozní tlak [bar] 3.0
Max. provozní tlak [bar] 8.0
Zdvih/čelist [mm] 5.0
Spotřeba vzduchu/zdvih čelistí při 6 barech [l] 8.0
Moment setrvačnosti [kgm²] 1.13
Vlastní hmotnost [kg] 78.0

Scope of delivery
Chuck, distributor ring cover, T-nuts with screws, chuck mounting bolts, 2 elbow-unions R 1/4" on the distributor ring, 1 set-screw to position the distributor ring, 6 double-threaded mounting bolts, 2 couplings for connection to the electro pneumatic control block, spacer ring, operating manual; without distributor ring mounting bracket, without top jaws
