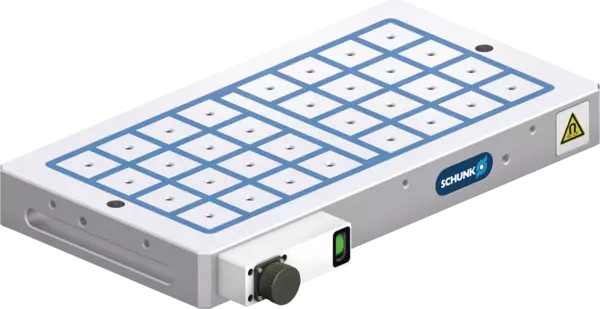

MFRS-A1-050 600 x 315
Magnetspannplatten mit Quadratpoltechnik
Ident.-Nr. 423413
Dieses Produkt ist abgekündigt und ist nicht mehr erhältlich.
Hier mehr erfahren und Kontakt aufnehmen.
Alternative Produkte:
Magnetspanntechnik Standard
Abkündigungsinformationen:
Abkündigungsinformationen:
- End-of-Sales Datum: 2025-07-01
- Ersetzt durch: 1594947
- Magnetspannplatte Elektropermanent
- Technologie: Quadratpol
- Magnettyp: AlNiCo + Neodym
- Mit patentierter Statusanzeige an der Magnetspannplatte zur Anzeige des Spannzustandes (Rot/Grün)
- Ohne niedrigen Restmagnetismuszyklus
- Abmessungen: 600 x 315 x 66 mm
- Polgröße: 50 x 50 mm
- Anzahl Pole: 32 (Polgewinde M8)
- Max. Haltekraft je Pol: 3.93 kN
- Max. Haltekraft Gesamt: 125.6 kN
- Max. Arbeitstemperatur: 80 °C
- Gewicht: 95 kg
- Schnellanschluss mit Verschlussdeckel
- Position Schnellanschluss: A (Standardposition)
- Anzahl Kanäle: 1
- Anschluss: 4-PIN
- Elektrischer Anschluss: 400 V / 460 V
- Schutzklasse: 67
Technische Details
| L [mm] | 600.0 |
|---|---|
| B [mm] | 315.0 |
| H [mm] | 66.0 |
| Forza di serraggio max. [kN] | 126.0 |
| Numero di poli | 32.0 |
| Connessione | 4-PIN |
| Numero di canali | 1.0 |
| Tensione di alimentazione | 400 V / 460 V |
| Spessore minimo pezzo [mm] | 8.0 |
| Peso [kg] | 95.0 |
La fornitura comprende
Piano magnetico, manuale operativo e dichiarazione di conformità CE; senza centralina e senza estensioni polari
