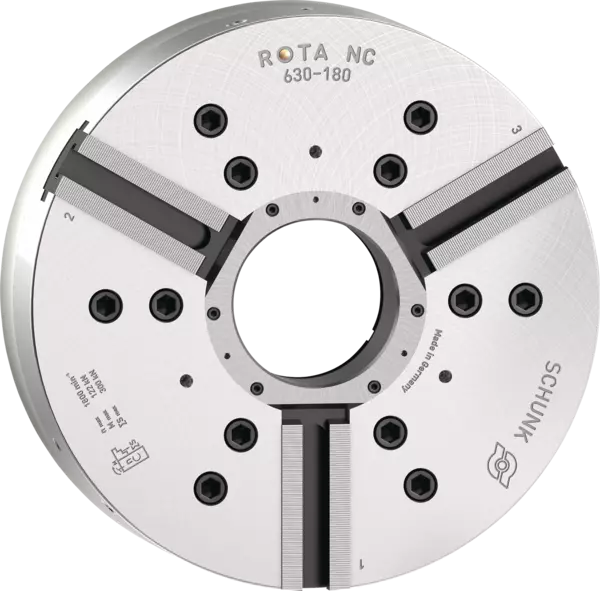

ROTA NC 630-180 Z520-SV90°

3-jaw power chuck with through-hole
Ready for shipment from 11 working days

Description

Standard power lathe chucks with through-hole

Product features:
  • 3-jaw wedge-hook chuck
  • Through-hole: 180 mm
  • Spindle holder: Z520
  • Jaw interface: 3/32" x 90° Nut 30H7
Technical data:
  • Stroke per jaw: 11.2 mm
  • Piston stroke: 42 mm
  • Max. clamping force: 300 kN
  • Max. actuating force: 122 kN
  • Max. RPM: 1800 1/min
  • Weight: 365 kg

Digital services ROTA NC 630-180 Z520-SV90°

Matching with the product ROTA NC 630-180 Z520-SV90°, we offer various digital services – the perfect complement for maximum efficiency, planning and process reliability.

Technical data ROTA NC 630-180 Z520-SV90°

Spindle type -
Spindle size Z520
Serration 3/32" x 90°
Max. RPM [1/min] 1800
Max. clamping force [kN] 300
Max. actuating force [kN] 122
Stroke/jaw [mm] 11.2
Piston stroke (H) [mm] 42
Moment of inertia [kgm²] 19.8
Weight [kg] 365

Definition of technical designations

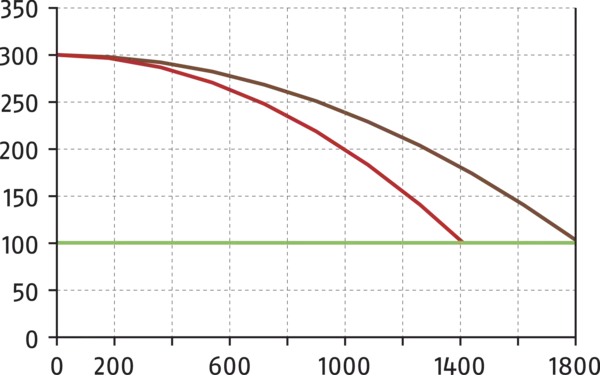

Definition clamping force
The clamping force is the arithmetic sum of the individual forces occuring at the chuck jaws, distance “H“ at maximum pressure and maximum torque. The specifications exclusively refer to the grease used by SCHUNK.
Scope of delivery
Chuck, T-nuts with screws, chuck mounting bolts, mounting wrench for turnable threaded ring, eye bolt, and operating manual
