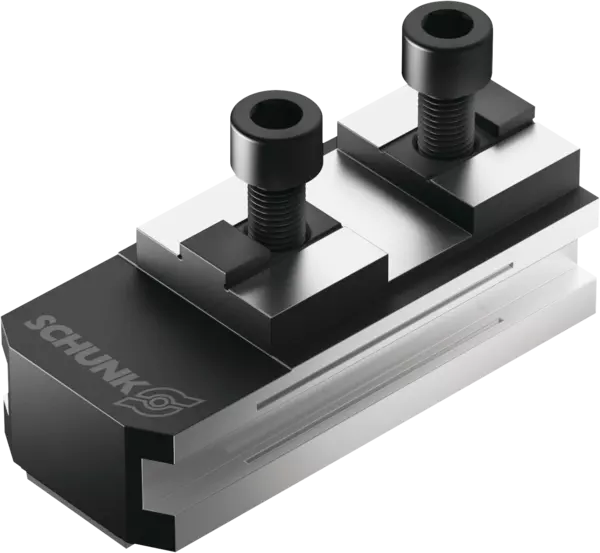

EWB-MT 265
Base jaws
ID 160791
EWB-MT 265, Base jaws
- Serration: Straight serration
- Mounting: Tongue and groove
- Groove width: 20 mm
- Width of path: 12 mm
- Delivery unit: 1 set = 3 pieces
- Scope of delivery: Including cylindrical screws
Technical details
| Product group | Base jaws |
|---|---|
| Mounting | Tongue and groove |
| Serration | Straight serration |
| Slot width N [mm] | 20.0 |
| Tab width S [mm] | 12.0 |
| Width B [mm] | 45.0 |
| Height H [mm] | 40.0 |
| Height H1 [mm] | 37.0 |
| Length L [mm] | 104.0 |
| Hole spacing b [mm] | 40.0 |
| Screws | M12 |
| m/set [kg] | 3.2 |
