LGZ

LGZ

Centric Grippers

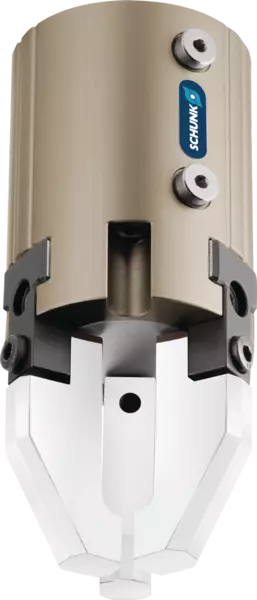

universal 3-finger centric gripper with T-slot slideway and excellent cost-performance ratio
Variants
Do you have a question?
Description

Advantages – Your benefits

  • Function optimized gripper type
    for maximum cost effectiveness
  • Stable, ground T-groove slideway
    for highest precision in handling
  • Matching SCHUNK C-slot switch
    for process reliable position monitoring
  • Hard-anodized or hardened functional components
    For a long service life
  • Centering sleeves
    for a repeat accurate exchange of grippers and fingers
  • Compact dimensions
    for minimized interfering contours

Options and special information

  • Gripping force maintenance version AS/IS
    The mechanical gripping force maintenance version ensures minimum gripping force even in the event of a pressure drop. In the AS/S version this acts as a closing force, in the IS version as an opening force.
  • Monitoring with a SCHUNK MMS 22 or RMS 22 sensor is not possible. The use of the recommended sensors MMS-P is compulsory.
