  1. Homepage
  2. Workpiece clamping technology
  3. Quick-change pallet systems
  4. Quick-change pallet system for general milling applications and heavy duty cutting
  5. Individual modules NSE3
  6. NSE3 138-V1-K

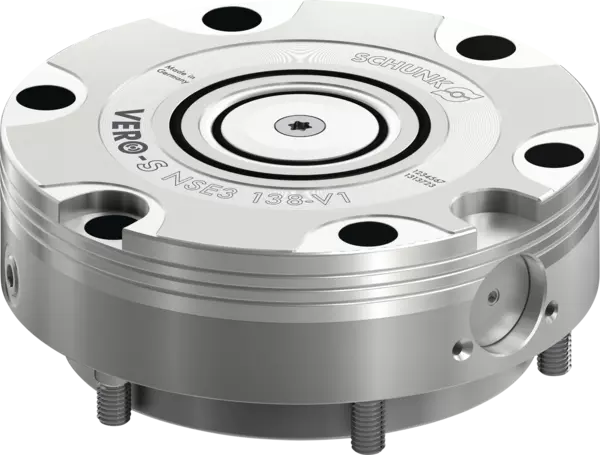

NSE3 138-V1-K

NSE3 138-V1-K

Clamping Modules

ID 1313724

Ready for shipment from stock
Clamping module standard

Product features:
  • Spring-loaded system - Pneumatically opening
  • Turbo function
  • Cone seal
  • Anti-rotation protection two-way 90°
  • Dynamic pressure monitoring of the clamping slide positions
Technical data:
  • Dimensions: Ø138 x Ø110 x 55,7 mm
  • Pull-down force: 8 kN
  • Pull-down force with turbo: 28 kN
  • Actuation pressure: 6 bar
  • Repeat accuracy: < 0.005 mm
  • Weight: 4.5 kg
Do you have a question?
Request CAD data
Technical details
Diameter [mm] 138
Pull-down force [kN] 8
Pull-down force with turbo [kN] 28
Unlocking pressure [bar] 6
Repeat accuracy [mm] < 0.005
Weight [kg] 4.5

Scope of delivery
Clamping module, mounting screws, fitting screws, O-rings, cover caps, operating manual; without clamping pins, without indexing pins
