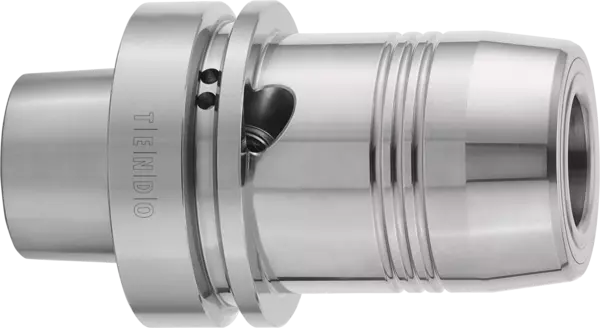

TENDO P HSK-F 63 Ø20x85
油圧拡張ツールホルダー
IDnr. 203993
Dit product wordt stopgezet en zal slechts een beperkte tijd beschikbaar zijn.
TENDO P HSK-F 63 Ø20x85, ツールホルダー
- 油圧拡張ツールホルダー
- シリーズ: TENDO Platinum
- ツールバーインターフェース: HSK-F 63
- クランプ径: 20 mm
- 突出長さ: 85 mm
- 振れ精度: < 0.003 mm、2.5 x D で
- バランスグレード: 25,000 RPM または Umax < 1 gmm 時に G2.5
Technische gegevens
| Technologie | Hydraulische expansie-gereedschapshouder |
|---|---|
| Reeksen | TENDO Platinum |
| Scheidingvlak met de gereedschaphouder | HSK-F 63 |
| Standaard voor gereedschapshouder | DIN 69893-6 |
| Klemdiameter D1 | 20 mm |
| D2 [mm] | 42.0 |
| D3 [mm] | 50.0 |
| D6 [mm] | 37.5 |
| Uitstekende lengte L1 [mm] [inch] | 85 mm / 3.3" |
| L2 [mm] | 50.0 |
| L3 [mm] | 7.0 |
| L4 [mm] | 48.0 |
| L5 [mm] | 59.0 |
| G | M12x1 |
| Gewicht [kg] | 1.2 |
| Koelvloeistofbestendig | ja |
| Standaardlengte | ja |
Run-out accuracy
< 0.003 mm at 2.5 x D
Balancing grade
G2.5 at 25,000 RPM or Umax < 1 gmm
Tool shank quality
h6
Data carriers
Bore for data carrier as an option
Toolholder changes
For automatic toolholder changes
Length-setting screw
With adjustment screw for axial length adjustment
Scope of delivery
Does not include an actuation key
Individual
Additional sizes and customized designs are available upon request
TENDO Platinum with Cool Flow available on request
