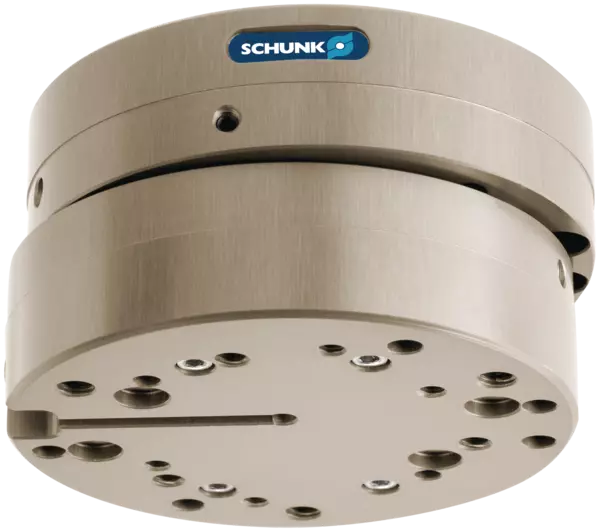

AGE-F-XY-080-2
IDnr. 324961
- Compensatie XY: ± 5 mm
- Gewicht werkstuk: 32 kg
- Min. terugzetkracht: 85 N
- Max. terugzetkracht: 130 N
- Kracht Fz max.: 2800 N
- Kracht Fd max.: 12000 N
Technische gegevens
| XY 补偿 [mm] | ± 5 |
|---|---|
| 建议搬运重量，垂直 [kg] | 32.0 |
| 最小复位力 [N] | 85.0 |
| 最大复位力 [N] | 130.0 |
| 弹簧刚度 [N/mm] | 15.0 |
| 重复精度 [mm] | ± 0.01 |
| 重量 [kg] | 3.13 |
| 最低环境温度 [°C] | 5.0 |
| 最高环境温度 [°C] | 80.0 |
| 直径 D [mm] | 135.0 |
| 高度 Z [mm] | 75.0 |
| 力矩 Mx max. [Nm] | 50.0 |
| 力矩 My max. [Nm] | 50.0 |
| 力矩 Mz max. [Nm] | 150.0 |
| 力 Fz max. [N] | 2800.0 |
| 最大力 Fd [N] | 12000.0 |
尺寸和最大载荷
Functional chart
尺寸和最大载荷
这是可影响补偿装置的所有力矩和负载之和的最大值（加速力和扭矩、过程力等），以确保功能不出差错。
Functional chart
General notes about the series
Harsh environmental conditions
Please note that use under harsh environmental conditions (e.g. in the coolant area, cast and grinding dust) can considerably reduce the service life of the units, and we will not take over any warranty. However, in many cases we can find a solution. Please contact us for assistance.
Handling weight
is the weight of the total load attached to the flange. When designing, the permissible forces and moments have to be paid attention to. Please note that exceeding the recommended handling weight will shorten the lifespan.
Guidance system
smoothly running cross roller guides
Monitoring
by magnetic switch
Actuation
spring return with spring forces
Housing
hard anodized aluminum alloy, functional parts made of hardened steel
Scope of delivery
Compensation unit in the ordered variant, elements for mechanical connection and safety information. Product-specific instructions can be downloaded at schunk.com/downloads-manuals.
Warranty
24 months
