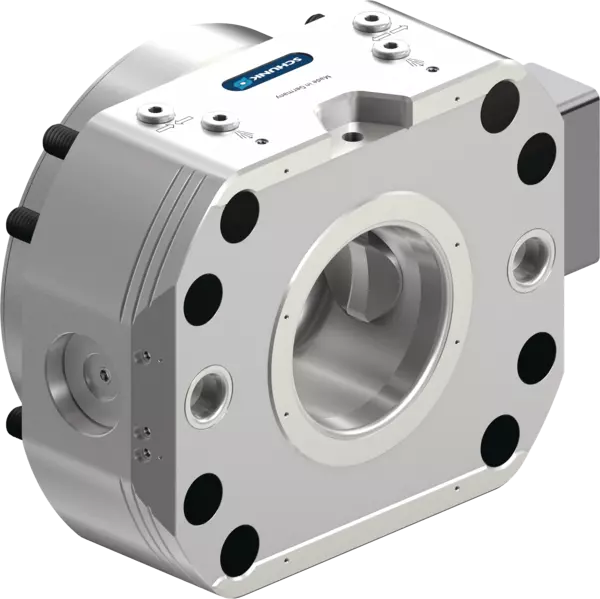

NSR maxi 220
Robot couplings
ID 471940
Robot module of the quick-change pallet system in standard version
- Spring-loaded system - Pneumatically opening
- Turbo function
- Integrated cleaning function
- Dimensions: 220 x 176 x 111 mm
- Pull-down force: 12 kN
- Pull-down force with turbo: 50 kN
- Max. moment Mx: 4000 Nm
- Max. moment Mz: 4000 Nm
- Repeat accuracy: < 0.05 mm
- Unlocking pressure: 6 bar
- Weight: 21 kg
Technical details
| Length [mm] | 220.0 |
|---|---|
| Width [mm] | 176.0 |
| Pull-down force [kN] | 12.0 |
| Pull-down force with turbo [kN] | 50.0 |
| Unlocking pressure [bar] | 6.0 |
| Repeat accuracy [mm] | < 0.05 |
| Moment Mx max. [Nm] | 4000.0 |
| Moment Mz max. [Nm] | 4000.0 |
| Weight [kg] | 21.0 |
Scope of delivery
Robot module, mounting screws, fitting screw, O-rings, proximity switch, operating manual
