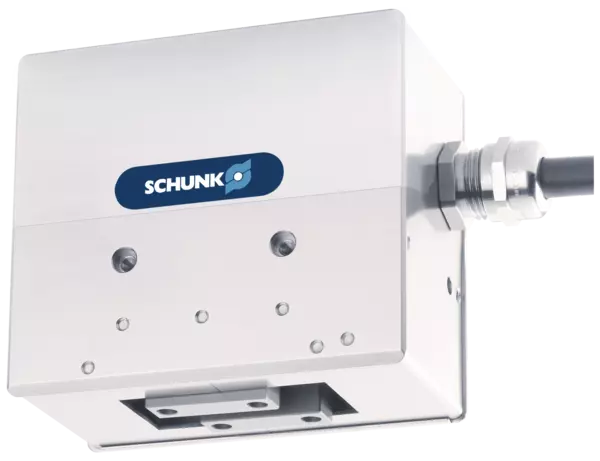

EVG 55-40 Similar a la imagen

EVG 55-40

Pinza universal

ID 306020

Pinza universal EVG, Tamaño: 55-40, eléctrico, Interfaz de comunicación: Véase la unidad de control MCS

  • Carrera por mordaza: 20 mm
  • Fuerza de agarre mín.: 5 N
  • Fuerza de agarre máx.: 24 N
  • Suministro de energía: 24 V DC
  • Corriente máxima total: 8 A
  • Temperatura ambiente máx.: 55 °C
Carrera por mordaza [mm] 20.0
Fuerza de agarre mín. [N] 5.0
Fuerza de agarre máx. [N] 24.0
Peso recomendado de la pieza [kg] 0.12
Longitud máxima admisible de los dedos [mm] 125.0
Peso máx. admisible por dedo [kg] 0.1
Precisión de repetición [mm] ± 0.05
Tiempo de cierre [s] 0.6
Tiempo de apertura [s] 0.6
Velocidad máx. [mm/s] 300.0
Aceleración máx. [mm/s²] 10000.0
Peso [kg] 0.79
Temperatura ambiente mín. [°C] 5.0
Temperatura ambiente máx. [°C] 55.0
Clase de protección IP 20
Longitud X [mm] 100.0
Anchura Y [mm] 55.0
Altura Z [mm] 89.2
Corriente nominal [A] 4.0
Corriente máx. [A] 8.0
Sistema electrónico de control externa
Tipo de controlador MCS-06
Interfaz de comunicación Véase la unidad de control MCS

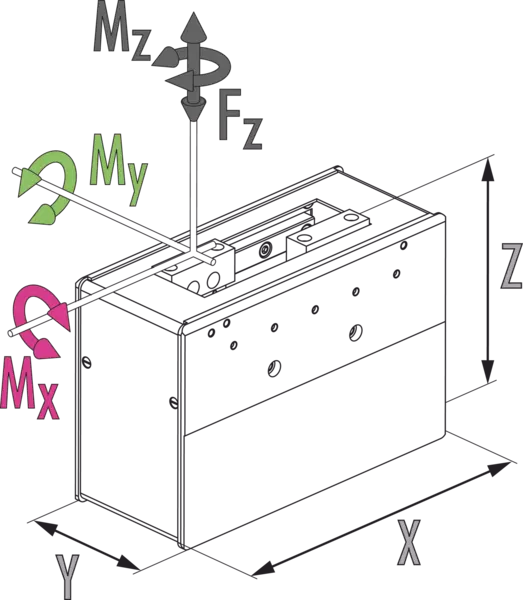

Momento Mx máx. [Nm] 10.0
Momento My máx. [Nm] 9.0
Momento Mz máx. [Nm] 7.0
Máx. fuerza axial Fz máx. [N] 150.0

General notes about the series

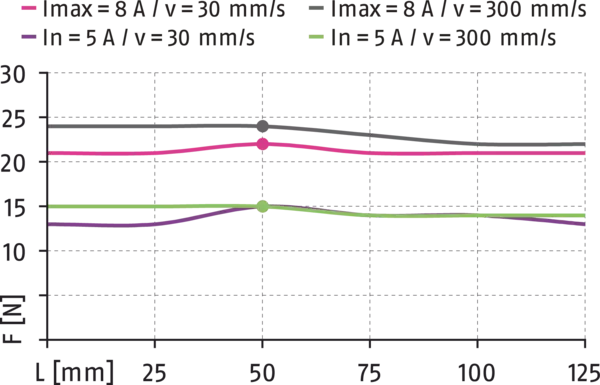

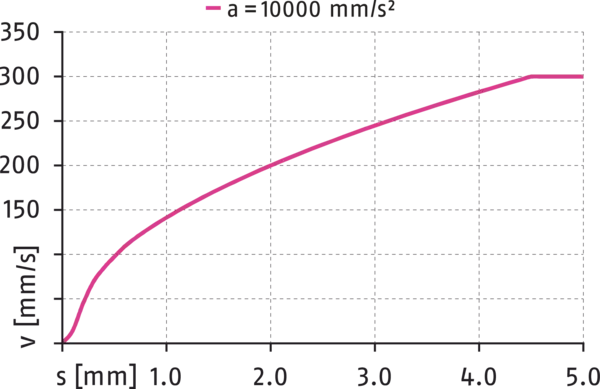

Gripping force
is the arithmetic sum of the individual force applied to each jaw at distance P (see illustration).

Finger length
is measured from the reference surface as the distance P in direction to the main axis.

Repeat accuracy
is defined as a distribution of the end Position for 100 consecutive strokes.

Workpiece weight
is calculated for force-fit gripping with a coefficient of static friction of 0.1 and a safety factor of 2 against workpiece slippage at acceleration due to gravity g. For form-fit or capture gripping, there are significantly higher permissible workpiece weights.

Closing and opening times
Minimum closing and opening times are merely the movement times of the base jaws or fingers at max. speed, max. acceleration, without current limitation (maximum current), and observance of the maximum permissible mass per finger.

Nominal currents
can be permanently actuated. With regard to all the currents which are ranging above the nominal current up to the maximum current, the notes of the individual product documentation has to be respected.

Electrical brake
The built-in, electric holding break is used for fixing and holding the position of the gripper jaws in the event of a power failure. It cannot cover all of the security or gripping force maintenance functions.

Operating principle
Belt drive

Housing material
Aluminum alloy, coated

Base jaw material
Aluminum alloy, anodized

Actuation
servo-electric, via brushless DC servomotor

Warranty
24 months

Scope of delivery
Enclosed accessory pack with centering sleeve, assembly and operating manual with declaration of incorporation. An external controller MCS-06 is required for operating the gripper EVG The connection cable with a length of 3 meters is attached to the gripper. The controller is optionally available and is not included in the scope of not included.
