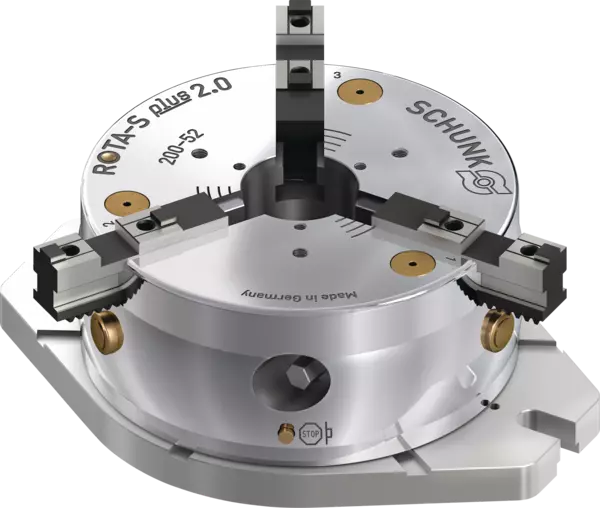

ROTA-S plus 2.0 200 K-SFG
Stationary 3-jaw Chucks, manually actuated
ID 819922
Stationary manual lathe chuck standard
Product features:
Product features:
- 3-jaw wedge-bar chuck
- Jaw quick-change system
- Base plate for stationary use
- Through-hole: 52 mm
- Jaw interface: Angled serration
- Stroke per jaw: 7 mm
- Tooth pitch: 4.8 mm
- Max. clamping force: 100 kN
- Max. torque: 120 Nm
- Weight: 25.5 kg
Technical details
| Slag per klem [mm] | 7.0 |
|---|---|
| Max. koppel [Nm] | 120.0 |
| Max. opspankracht [kN] | 100.0 |
| Tandsteek [mm] | 4.8 |
| Gewicht [kg] | 25.5 |
| Vertanding | Hoekvormige vertanding |
Levering
Manuele klauwplaat, basisklauw met tand en groef, montageschroeven, spansleutel, SCHUNK-magneten, beknopte gebruikershandleiding, gebruikershandleiding; zonder bovenste klemmen
